DCLNR2020K12
Grade:carbide
Name: cnc lathe tools holder
OEM&ODM:Acceptable
Product name: turning tool holder
Application: Turning Tool
Classification :
Mots-clés : Travail des métaux / Couteau en carbure
For more information please Whatsapp or E-mail us
Product Details
1:Can be used on CNC lathe machine and engine machine.
2:Matched with CNC insert.
3:Spare part import from high quality steel ,the hardness of screw is grade 12.9
4:Material 42CrMo,long tool life,better wear-resistantce,strength and rigidity,high working efficiency.
5:Stable cutting,smooth surface,high precision.
|
Product Name
|
CNC Turning Toolholder DCLNR2020K12 Lathe Indexable External Cutting Toolholder
|
|
Material
|
42CrMo
|
|
Color
|
Black
|
|
Standard
|
ISO
|
|
Type
|
Type M
|
|
OEM/ODM
|
Accepted
|
|
Used
|
CNC Lathe machinery
|
The DCLNR2020K12 is a high-performance external turning tool holder designed for use with C-type carbide inserts (80° diamond shape), such as CNMG inserts. It is widely used in CNC and conventional turning operations for medium to heavy-duty cutting of external diameters, facing, and profiling applications.

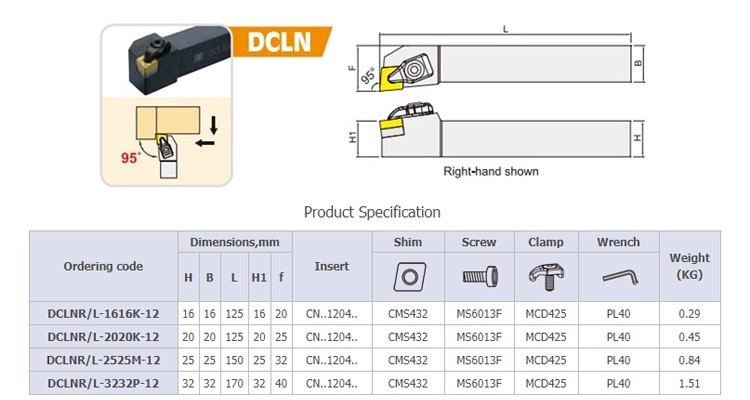

Key Specifications:
1.Tool Holder Code: DCLNR2020K12
2. Tool Type: External Turning Tool Holder (Right-Hand)
3.Insert Compatibility: CNMG (80° diamond-shaped inserts)
4. Shank Size: 20 x 20 mm (Square Shank)
5.Insert Size: 12 (Indicating the insert cutting edge length)
6.Approach Angle: 95
7.Clamp Mechanism:Secure top clamp and lever lock system for rigid insert retention.
8.1SO Standard: Designed in accordance with lSO 5608 standards
Features and Benefits:
1.Rigid Construction:
.Made from high-strength alloy steel, providing excellent rigidity and vibration resistance during heavy cutting
2.Insert Compatibility:
.Designed for CNMG inserts, which offer 4 cutting edges, improving cost efficiency and productiyity
3.Approach Angle:
.The 95° approach angle allows for effective clearance during external turning and ensures smooth chip evacuation.
4.Secure Clamping System:
Incorporates a reliable top clamp and screw lock system to hold the insert securely, ensuring stability during high-load machining
5.Versatility:
Suitable for operations like exteral turning, facing, and profiling in a variety of materials, including steel, stainless steel, and cast iron.
6 Precision and Performance:
Ensures consistent machining accuracy, excellent surface finishes, and extended tool life
7. Shank Size:
Compact 20 mm x 20 mm shank size provides compatibility with most CNC and manual lathes
8. Insert Size Flexibility:
Compatible with CNMG12 inserts, ideal for a range of cutting depths and feed rates
Applications:
External Turning: Precision machining of outer diameters
Facing Operations: Smooth and accurate end-face finishing
Profiling: Contouring operations on cylindrical components
Heavy-Duty Machining: Suitable for high-feed, large-depth cutting tasks
Industries:
Automotive manufacturing
Aerospace industry
General engineering
Heavy equipment machining
The DCLNR2020K12 tool holder, paired with CNMG inserts, provides superior performance, stability, and cost-effectiveness in demanding machining operations, making it an essential choice for precision turning tasks.
